Integrating Google Sheets API to Facilitate Data Transfer

Google Sheet API Corvid App

Summary

Google APIs is a set of application programming interfaces (APIs) developed by Google which allow communication with Google Services and their integration to other services. The Google Sheets API is pretty powerful and you can utilize it for anything to data collection to data retrieval. It is even possible to perform calculations on google sheets with specified inputs and displaying the outputs.

App Features

Connect any Google account and Google Sheet with 5 quick steps on the Configuration Page

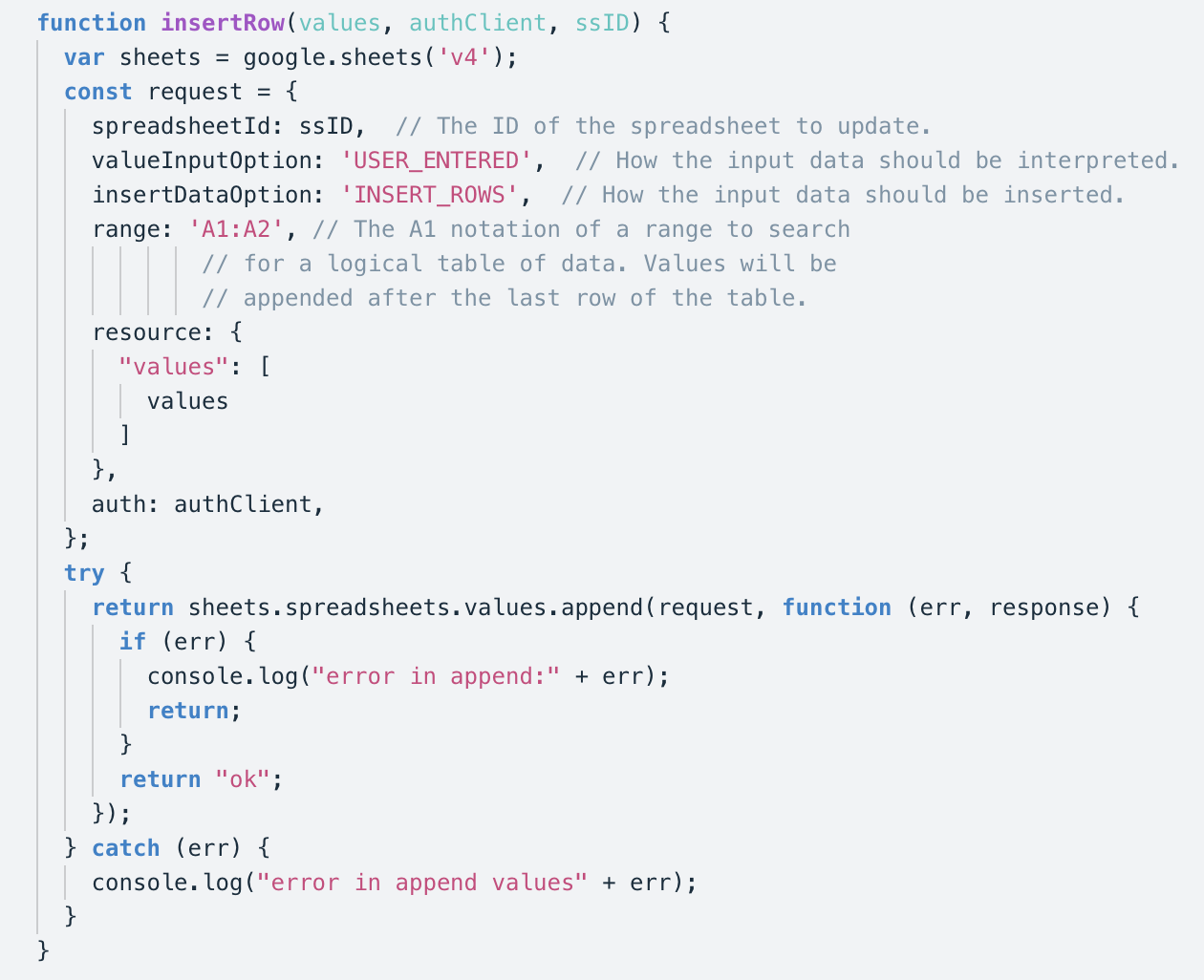

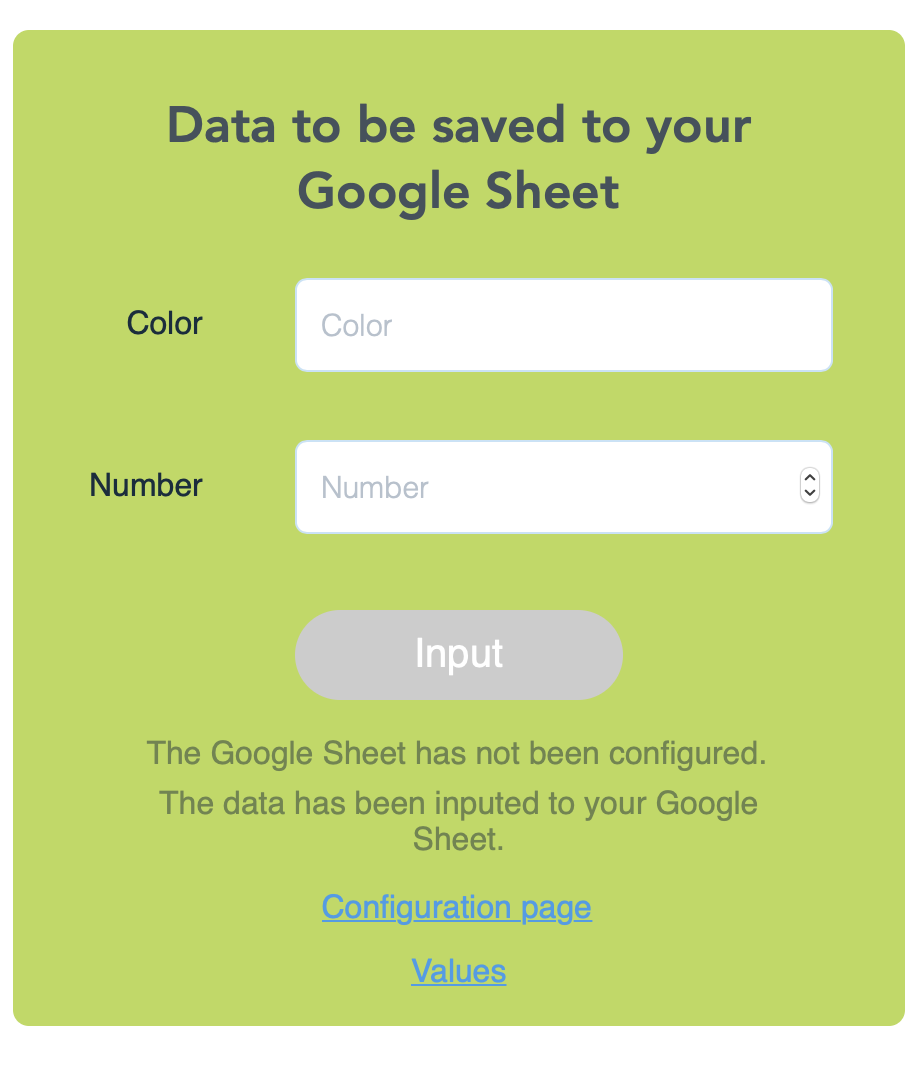

Input any data directly into a google sheet
Data retrieval from Google sheets is automatic with a page refresh
Able to manipulate data in your Google sheet and automatically display calculations

Introduction to the Sheets APIv4

The Sheets API allows developers to read, write, and format data in Sheets. The latest version of the Sheets API lets developers programmatically Read and write data format text and numbers, build pivot tables, enforce cell validation, set frozen rows, adjust column sizes, apply formulas, create charts, and more! For a good introduction on the Sheets API capabilities you can watch this intro video by Google that I found helpful!

For more information on the Google Sheets API visit the site here:

Visit Sheets API Site ↗

In particular, for this app I utilized two specific features of the Google Sheets API.

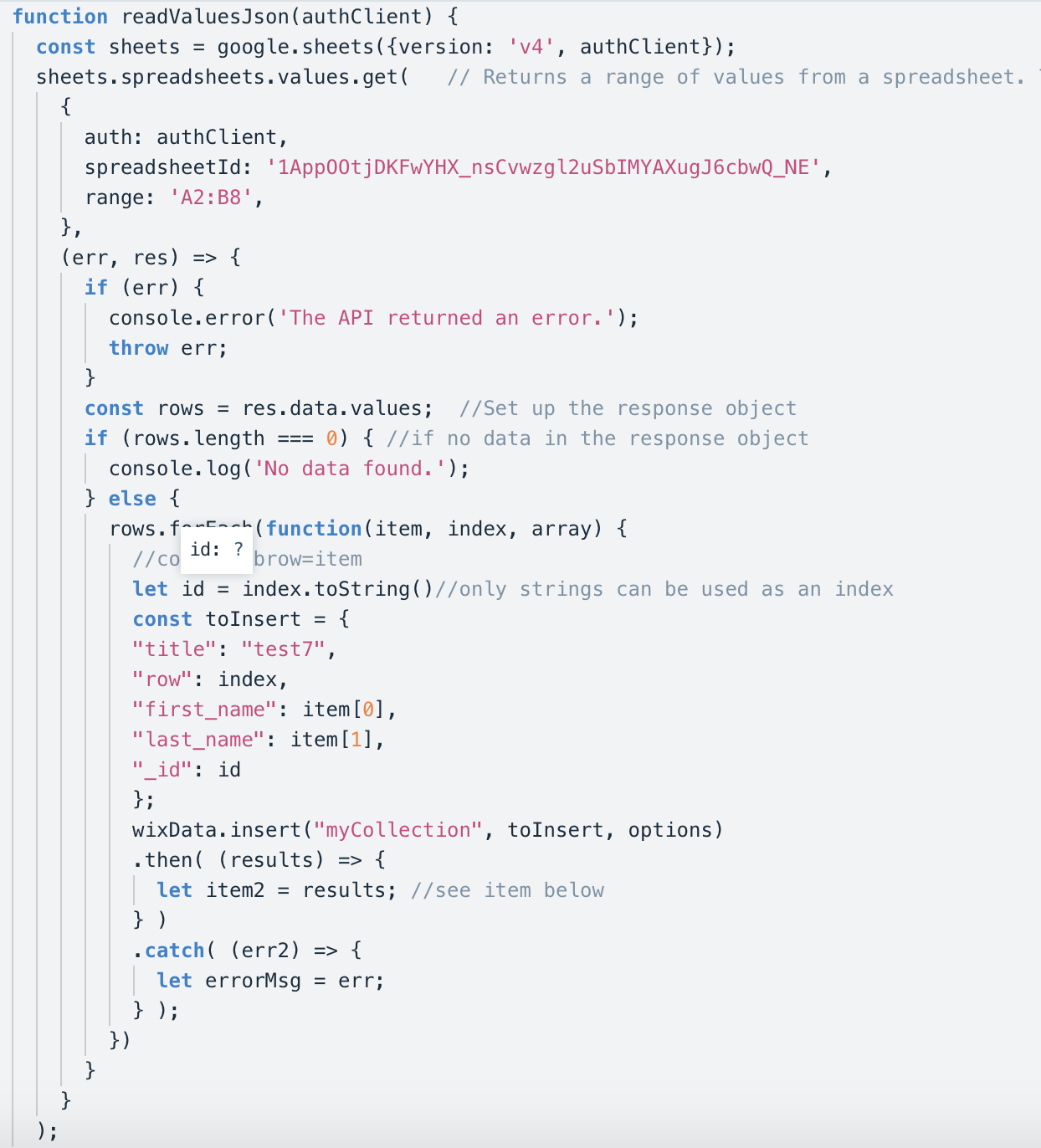

Reading/writing cell values only (via the spreadsheets.values collection)
Reading/writing any aspect of the spreadsheet (via the spreadsheets collection)

In particular, I created my app first by making a simple python command-line application that makes requests to the Google Sheets API. Because Corvid had a built in Node.js server, I had to then go back and work with javascript in the backend and make those changes.

Corvid Introduction

What is Corvid?

Corvid by Wix is a serverless, open development platform that lets you build professional web applications in a hassle-free environment. It is basically an accelerated enviroment for development of Web Apps that surpasses Wix's orignal capabilities. You still work in Wix's visual builder, but you are able to add custom functionality and interactions using Corvid APIs, and enjoy serverless coding in both the front-end and backend.

Corvid Features I Used in this App:

Coding

I was able to add my own JavaScript code to a Wix site and work with the Corvid APIs to add custom functionality and interactions to the app. Corvid also provides a full server-side runtime system based on Node.js. Node.js is an open source server environment. I exported my functions from the backend to the client-side using Corvid's web modules.

Databases

When you enable Corvid you also automatically add Wix Data to your site, which lets you work with our built-in databases. I was able to collect all of the Google Sheet data and directly input them in a Wix Collection. Once you've got databases enabled on your site, you can use Wix's visual builder to connect your data to elements on your site, capture user input, and create dynamic pages. You can also define your own dynamic pages with our custom routers.

Open platform

Lastly, Corvid lets you extend your site’s functionality to other services. You can install NPM packages, use our fetch to call external APIs, and expose your site's functionality as an API with our http functions. For this project, I downloaded the googleapi package to utilize the Sheets API.

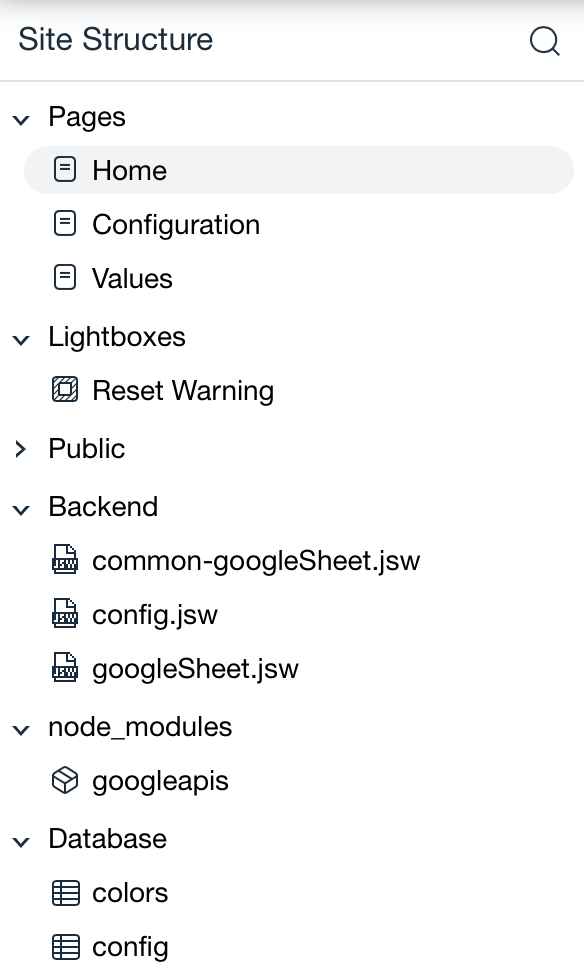

Site Structure

Backend

Again, there are three main backend JavaScript files in this App:

common-googleSheet: Handles all of the functions to connect to the Google Sheet
config.jsw: Handles all of the Google Auth 2.0 functions
googleSheet.jsw: Handles all of the Google Sheet API specific functions

Node_modules

Installed the Node.js client library for using Google APIs. Support for authorization and authentication with OAuth 2.0, API Keys and JWT tokens is included.

Collections

Created a database for storing the Configuration tokens and Google Sheet data

Google OAuth 2.0: Authorizing my App to Connect to Any Google Account

Google APIs use the OAuth 2.0 protocol for authentication and authorization.

What is OAuth?

OAuth doesn’t share password data but instead uses authorization tokens to prove an identity between consumers and service providers. OAuth is an authentication protocol that allows you to approve one application interacting with another on your behalf without giving away your password.

Google supports common OAuth 2.0 scenarios such as those for web server, installed, and client-side applications. To begin, obtain OAuth 2.0 client credentials from the Google API Console. Then your client application requests an access token from the Google Authorization Server, extracts a token from the response, and sends the token to the Google API that you want to access.
